ABB | 3BHE024577R0101 PP C907 BE | AMC 34 Control Board

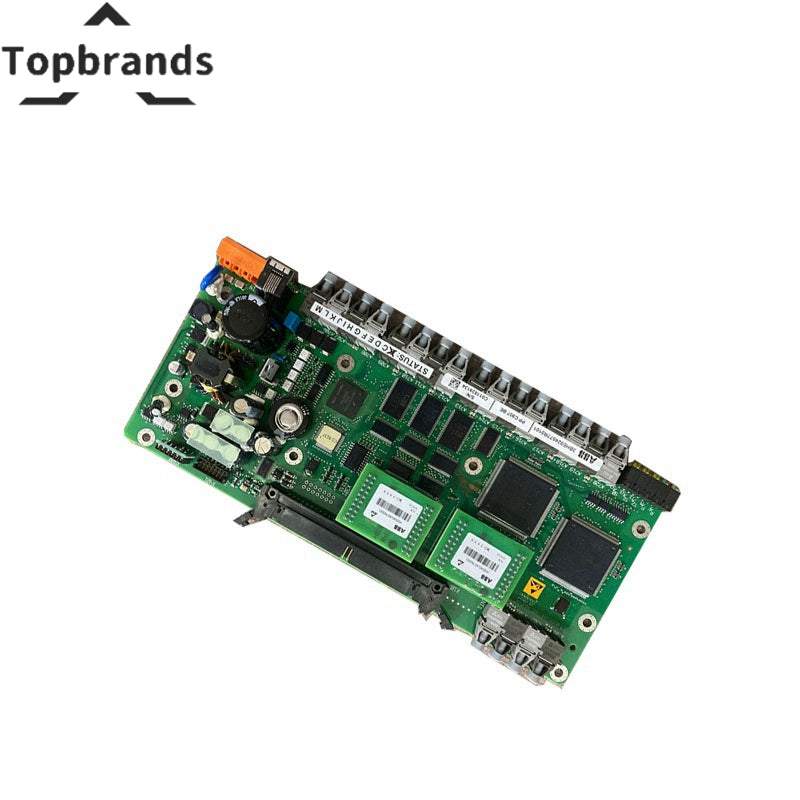

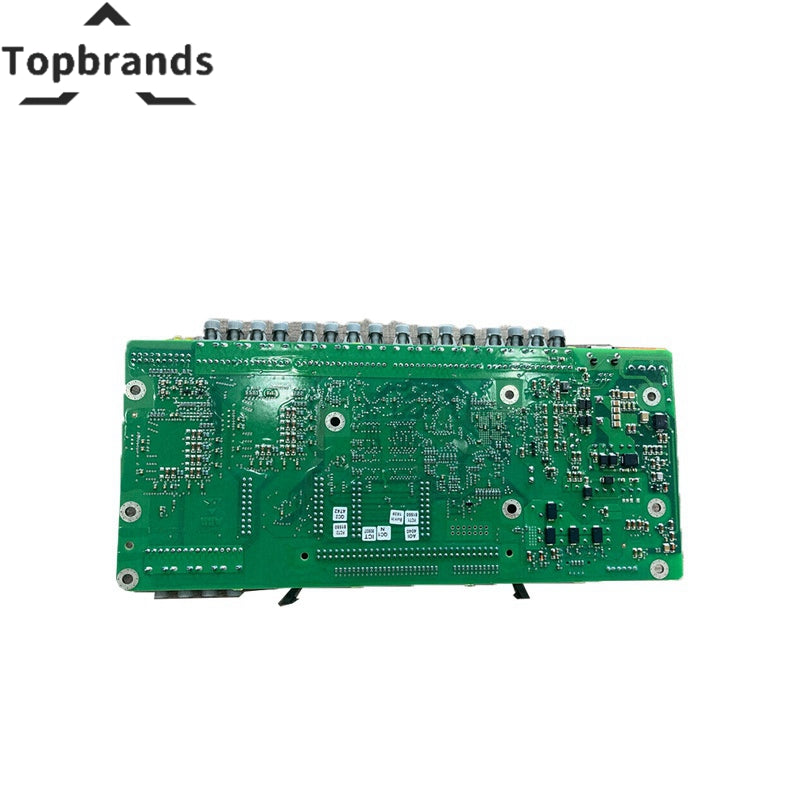

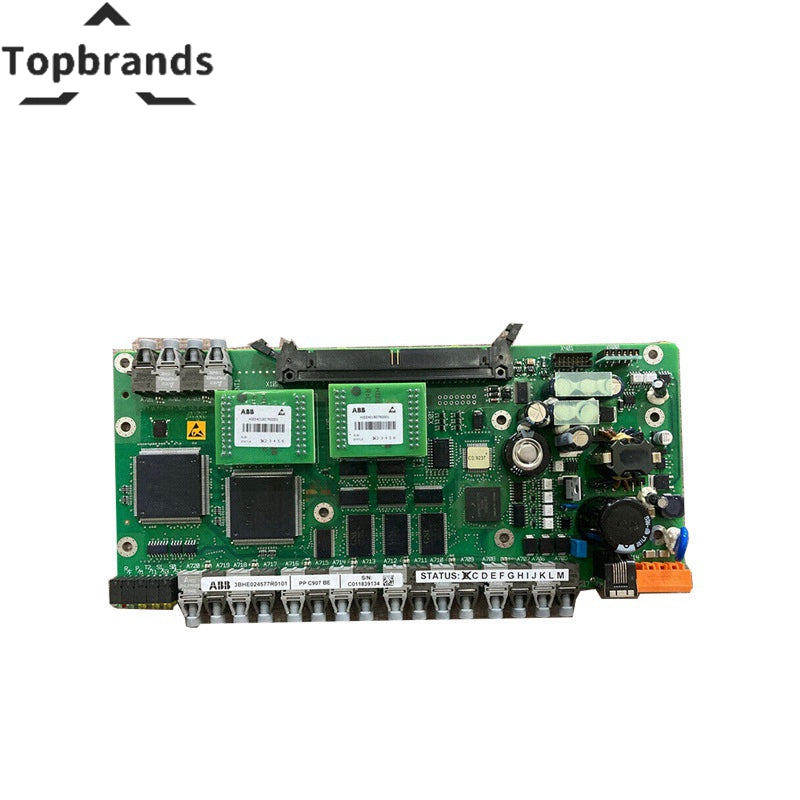

ABB 3BHE024577R0101 PPC907BE1 Controller Module

The ABB 3BHE024577R0101, known as the PPC907BE1, is a specialized controller module utilized in ABB Medium Voltage Drives, specifically the ACS2000 series. This module plays a crucial role in the control and application of medium voltage drives, ensuring precise motor control and reliable performance.

Key Applications:

• ABB Medium Voltage Drives ACS2000 4kV Frames:
  • Applicable to Frames 1, 2, and 3.
  • Ensures effective control and operation of medium voltage motors in these drive frames.

Key Features and Associations:

• AMC 34 - PCB Varnished Application and Motor Control:

  • The module is part of the AMC 34 system, which focuses on application and motor control.
  • Varnished PCB for enhanced protection against environmental factors such as moisture and contaminants.

• Crowbar Board Association:

  • Associated with the Crowbar Board, which is a protective feature in medium voltage drives.
  • The Crowbar Board helps protect the drive and motor from overvoltage and other electrical anomalies by safely dissipating excessive energy.

Technical Specifications:

• Controller Module Type: PPC907BE1
• Voltage Rating: Medium Voltage (4kV)
• Frame Compatibility: ACS2000 Frames 1, 2, and 3
• Protection: Varnished PCB for durability and reliability
