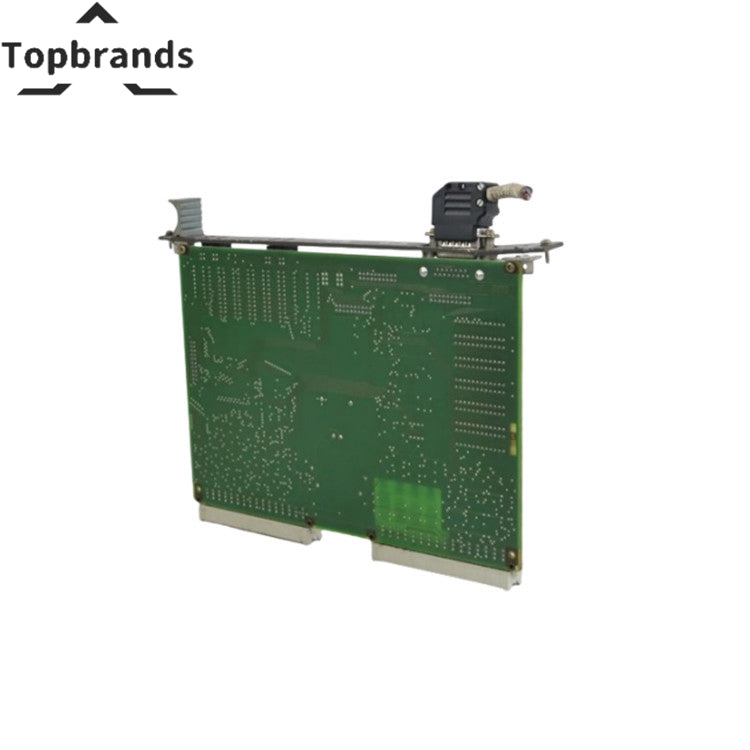

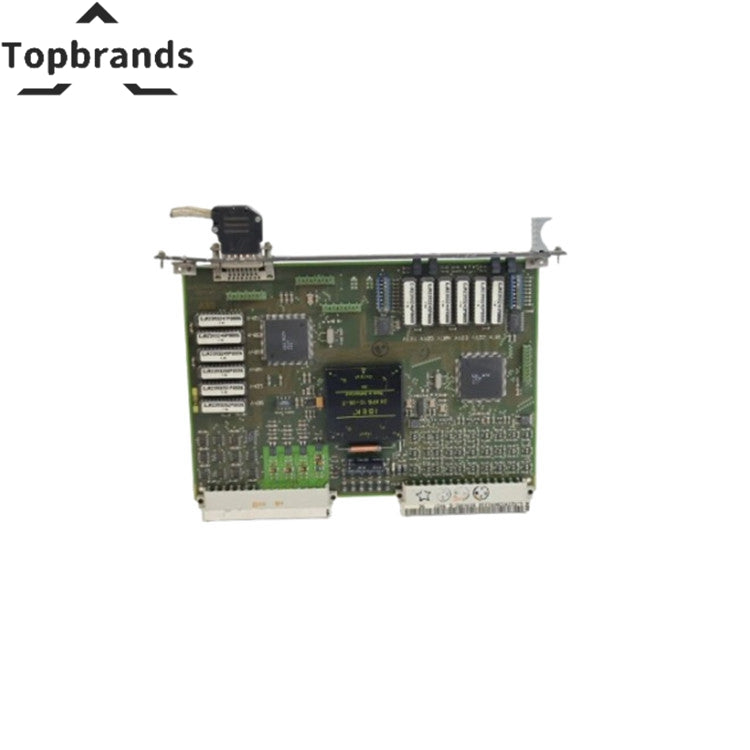

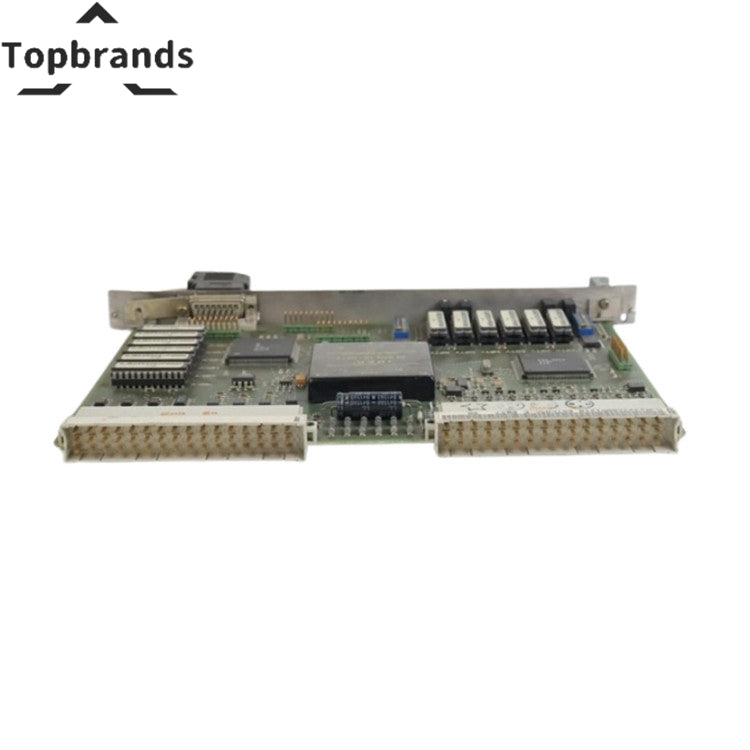

ABB 88TK05 Bus Coupling Module 100% Original New

SKU 88TK05

  • Part Number:

    88TK05

  • Manufacturer:

    ABB

  • Condition:

    Brand New & in Stock

  • Product Type:

    Bus Coupling Module

  • Origin:

    Sweden

  • Shipping Detail:

    Fedex and UPS etc

  • Warranty:

    12 months

Frequently inquire Together

100% Genuine Stock, 24/7 Service

Inquiry

Technical Data

Power Supply (on the module):

  • Operating Voltage: 24V +/- 25%
  • Current Consumption IS (approx.): 166 mA
  • Typical Power Dissipation: 4W

Monitoring Interface Input Values:

  • G12 - Disturbance of Cabinet Voltage Supply:
    • le = 5 mA
    • Ue = 24V
    • Closed-circuit principle
  • G22 - Thermostat Responded:
    • le = 5 mA
    • Ue = 24V
  • G32 - Cabinet Door Open:
    • le = 5 mA
    • Ue = 24V
  • UM - Annunciation Voltage:
    • UM = 24V

Output Values:

  • MST - General Station Disturbance:
    • la = 6 mA
    • Ua = 24V

RS485 Interface for Remote-Bus Coupling Module 88FT05 RS485 Standard:

  • Transmission Rate: 1 Mbaud
  • Termination Resistor: 100 ohms
  • Passive Differential Signal Voltage: 400 mV
  • Max. Length of Connection between 88TK05/88TK05: 10 m (total), type of cable RD-Y (ST) Y 16 x 2 x 0.22 mm or standard wiring
  • Max. Length of Connection between 88TK05/88FT05: 1 m, cable 89IK01
  • Max. Number of Stations: 4, in max. 2 mechanically interconnected cabinets

Input ESP:

  • le = 5 mA
  • Ue = 24V

Interference Immunity (of Station-Bus Coupling) in Case of Proper Installation:

  • ESD according to IEC 801/2: 8 kV to front panel
  • EMC according to IEC 801/4: 2 kV burst included in remote bus cable
