ABB

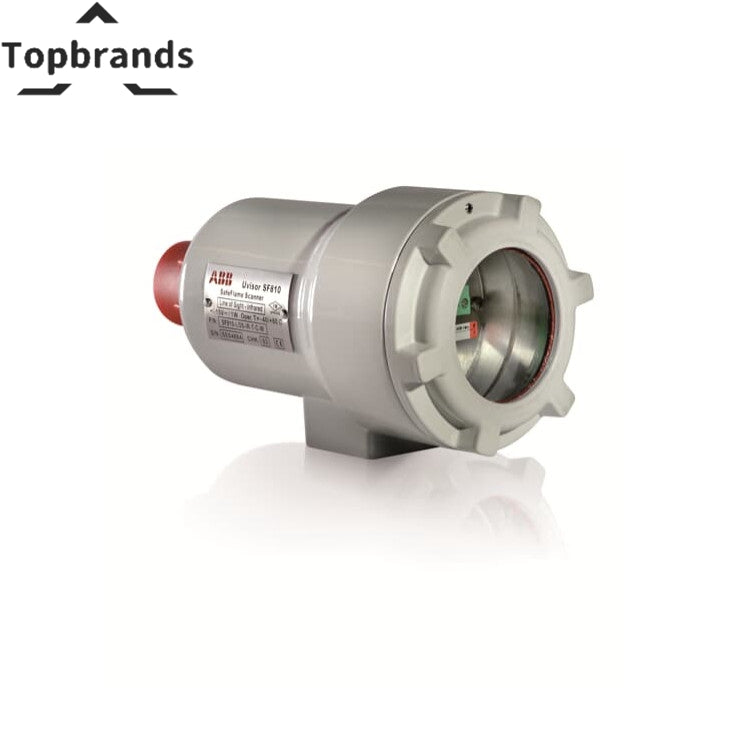

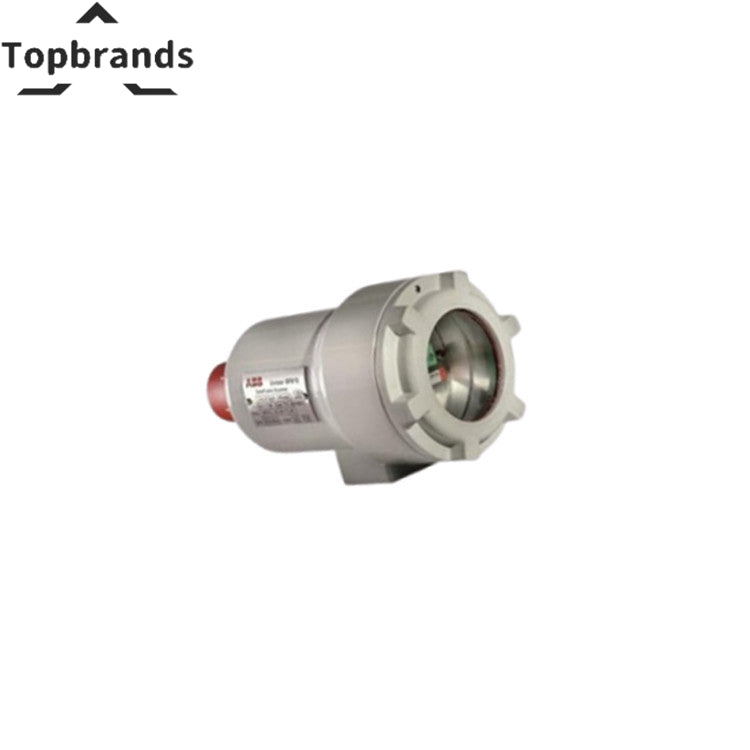

ABB UR600IR Flame Scanner Self Checked Detector

SKU UR600IR

  • Part Number:

    UR600IR

  • Manufacturer:

    ABB

  • Condition:

    Brand New & in Stock

  • Product Type:

    Flame Scanner

  • Origin:

    Sweden

  • Shipping Detail:

    Fedex and UPS etc

  • Warranty:

    12 months

Frequently inquire Together

100% Genuine Stock, 24/7 Service

Inquiry

ABB UR600IR Flame Scanner

  • Sensor: PbS (Lead Sulphide)
  • Spectrum Sensitivity: 0.6 ÷ 3 μm
  • Power Consumption: 300 mW DC supplied by Uvisor series control units
  • Ambient Temperature:
    • Operating: -10 ÷ 80°C (14 ÷ 176 °F)
    • T6 classified area: Max. 60°C (140 °F)
    • Storage: -40 ÷ 100°C (-40 ÷ 212 °F)
  • Enclosure: IP66 (NEMA 4X)
  • Classification: EEx-d IIC T6, ATEX category G-D CE type examination Certificate CESI 03 ATEX 151
  • Dimensions: 94 x 94 x 172 mm
  • Weight: 1 Kg (2.2 Lbs)
  • Air for Lens Cleaning: From clean ambient
  • Air Flow for Lens Cleaning:
    • Direct View: 115 l/min (4 SCFM). Excessive contaminant fuels might require up to 400 l/min (14 SCFM).
    • Extended Probe: 400 l/min (14 SCFM).
  • Minimum Cleaning Air Pressure:
    • Direct View: 20 mm H2O (1" W.C.) above the max wind box pressure measured at the “y” connection inlet.
    • Extended Probe: 300 mm H2O (12" W.C.) above the max wind box pressure measured at the “y” connection inlet
  • Maximum Fiber Optic Continuous Operating Temperature: 350°C (662°F)
  • Mounting Connection: 1" NPT male thread
  • Cable Entry for Electrical Connection: 1/2" NPT female thread
  • Electrical Connections: Standard 4 x 0.55 sq.mm (20 AWG) shielded cable. Recommended max. 300 meters (1000 feet) length. Screw type termination.
  • Compatible Amplifier Unit: Uvisor series amplifier
  • Approvals: CE ATEX FM in progress CSA in progress
