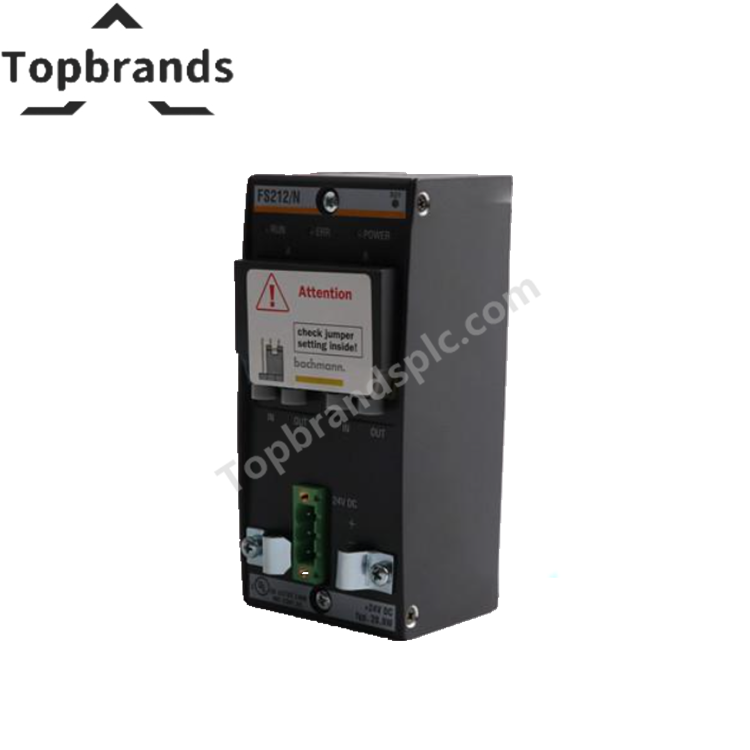

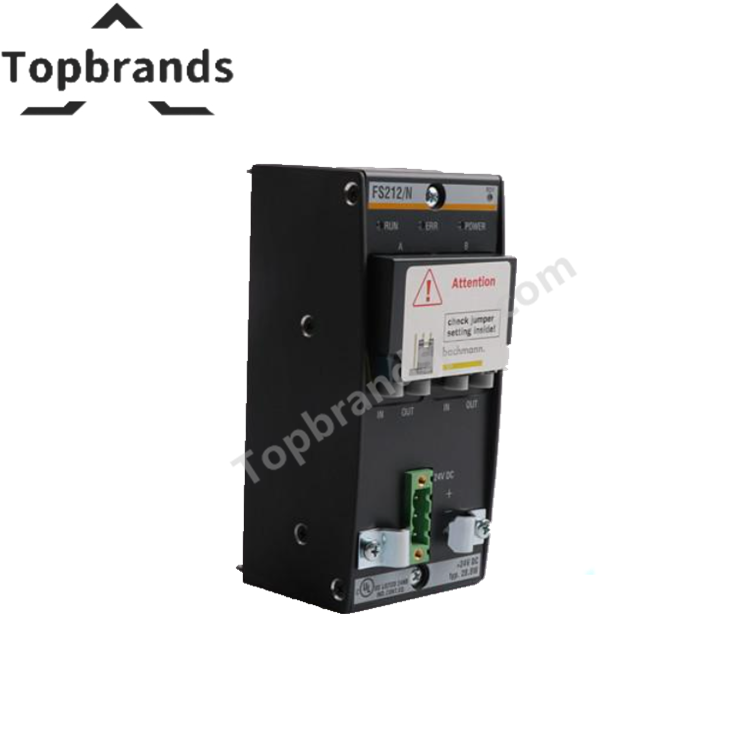

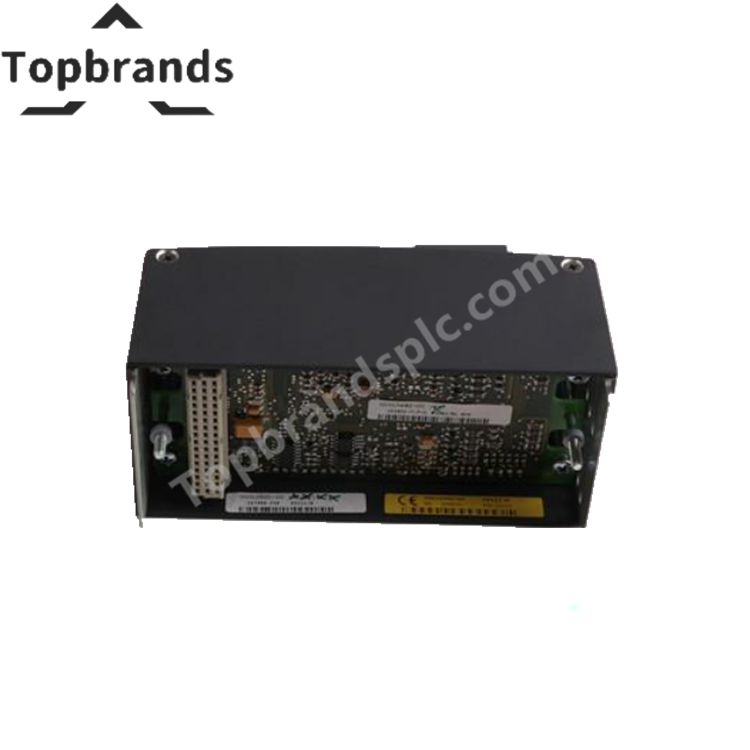

Bachmann FS212/N FASTBUS Save Module

Description

The FS212/N module is part of Bachmann's FASTBUS series, engineered to enable the distribution of sub-devices over long distances with minimal signal delay. It integrates a power supply to support I/O modules in substations, making it a reliable choice for complex automation setups.

Specifications

• Input Voltage: 24 V DC (18 V to 34 V)

• Power Output: 17 W

• Output Current:

  • +5 V: 2800 mA

  • +15 V: 250 mA

  • -15 V: 200 mA

• Communication Interface: Fiber Optic (FO)

  • Supports Plastic Optical Fiber (POF) up to 40 m

  • Hard Cladded Silica (HCS) cables up to 150 m

  • Special HCS cables up to 180 m

• Maximum Stations: 16 distributed stations

• Signal Delay: Minimal

• Operating Temperature: 0°C to +60°C

• Storage Temperature: -40°C to +85°C

• Humidity: 5% to 95% (non-condensing)

Features

• Integrated power supply for substation I/O modules.

• Fiber optic communication for long-distance and high-speed data transfer.

• Status indicators for RUN/ERR and fiber type.

• Reverse polarity protection and galvanic isolation (500 V).

• Compact design for easy integration into automation systems.
