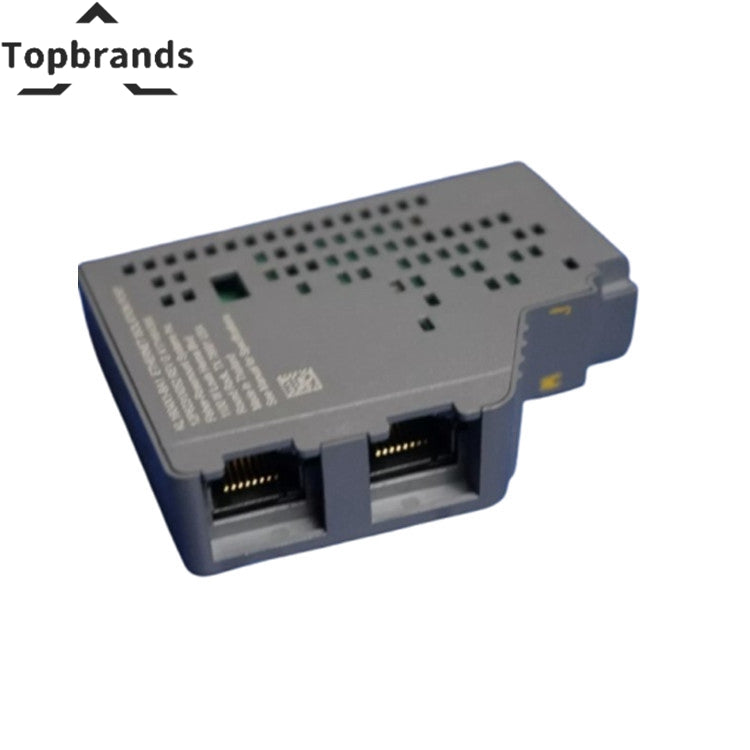

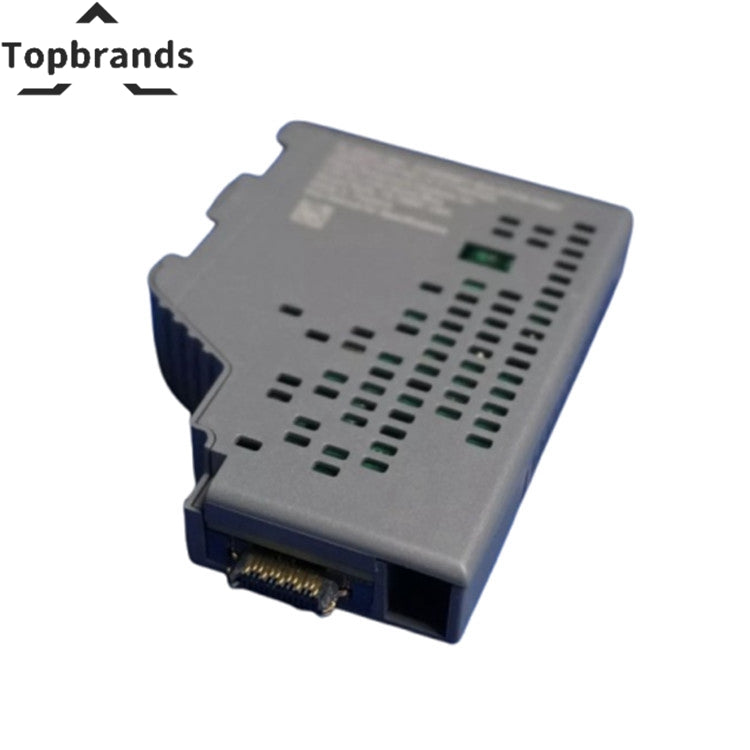

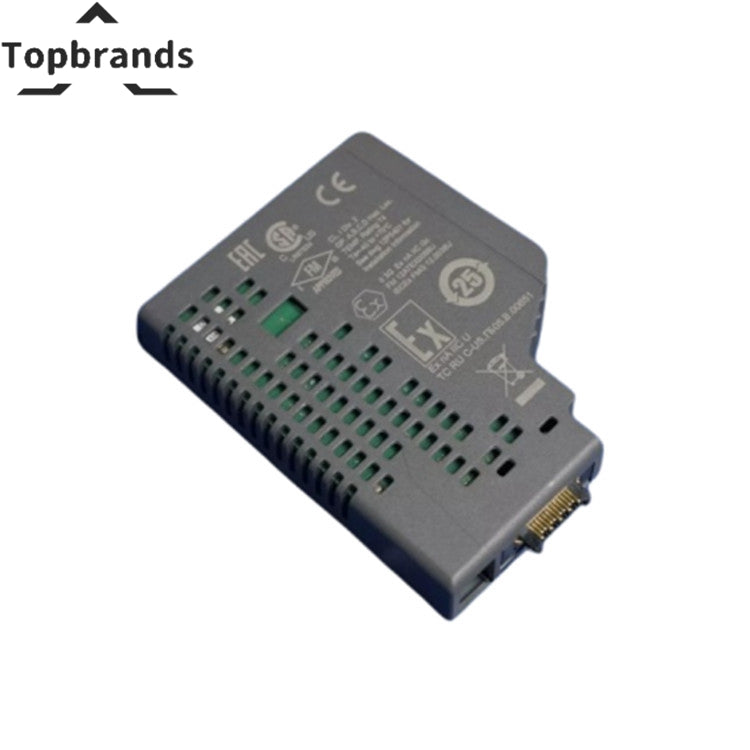

KL1604X1-BA1 Safety Isolation Port (Copper)
Hazardous Atmosphere Certifications
- II 3G Ex ec IIC Gc
- FM19ATEX0173U
- IECEx FMG 19.0019U
- FM21UKEX0017U
- CL. I Div. 2 GP. A,B,C,D
- CL. I Zone 2 AEx/Ex ec IIC Gc
- FM17CA0145U
- FM17US0286U
Power Specifications
-
Input power: +5.0 VDC at 200 mA
Environmental Specifications
-
Ambient Temperature: -40 °C to +70 °C
-
Shock: 10g ½ Sinewave for 11msec
-
Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
-
Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
-
Relative Humidity: 5 to 95% Non-Condensing
Additional Information
-
Note: Refer to the product label for serial number and location and date of manufacture.
-
Warning: This product has specific instructions for installation, removal, and operation in hazardous areas. Refer to document 12P5403 "DeltaV Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions". Other installation instructions are available in the " DeltaV S-series and CHARMs Hardware Installation" manual.
-
Removal and Insertion: This unit cannot be removed or inserted with system power energized unless the area is known to be non-hazardous.
-
Maintenance and Adjustment: This unit contains no user serviceable parts and should not be disassembled for any reason. Calibration is not required.
