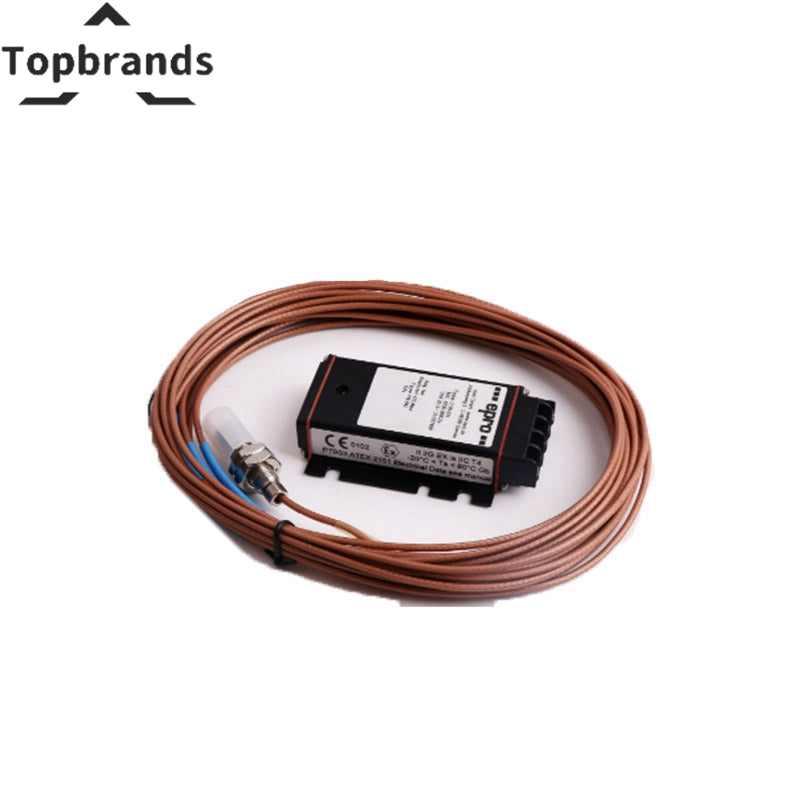

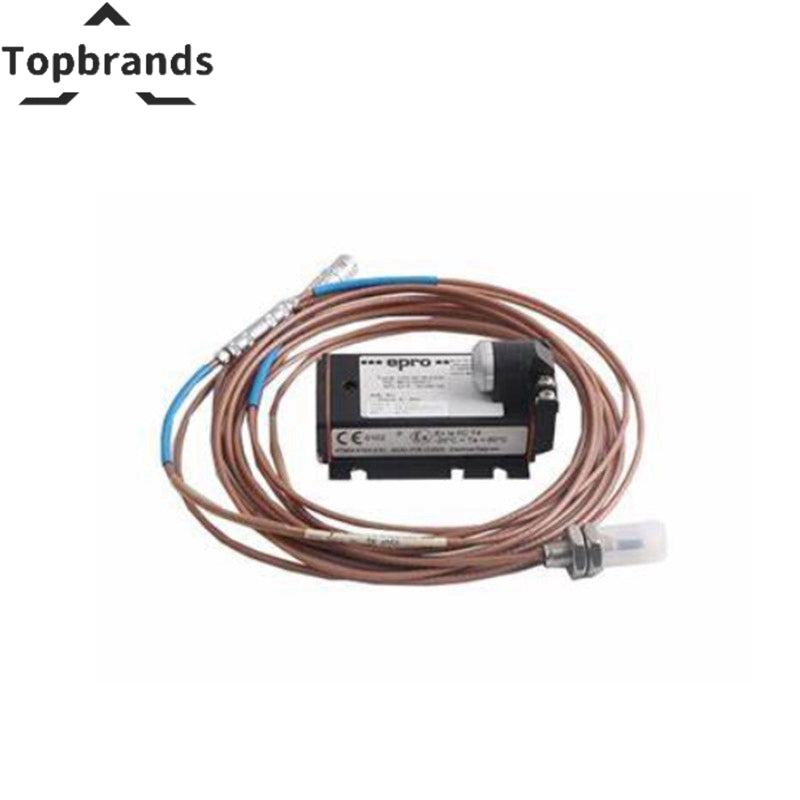

EPRO PR6423/013-110+CON021 Eddy Current Sensor
Technical Specifications:
-
Linear Measurement Range: 2 mm (80 mils)
-
Initial Air Gap: 0.5 mm (20 mils)
-
Incremental Scale Factor (ISF): ISO: 8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C (+32 to +113°F)
-
Deviation from Best Fit Straight Line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)
-
Minimum Shaft Diameter: 25 mm (0.79”)
-
Target Material (Ferromagnetic Steel): 42CrMo4 (AISI/SAE 4140) Standard Other (On Request)
-
Protection Class: IP66, IEC 60529
-
Operating Temperature Range:
- Sensor incl. 1m Cable: -35 to +200°C (-31 to 392°F)
- Cable & Connector: -35 to +150°C (-31 to 302°F)
-
Material:
- Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel)
- Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)
-
Weight (Sensor with 1m Cable): Approx. 100 grams (3.53 oz)
