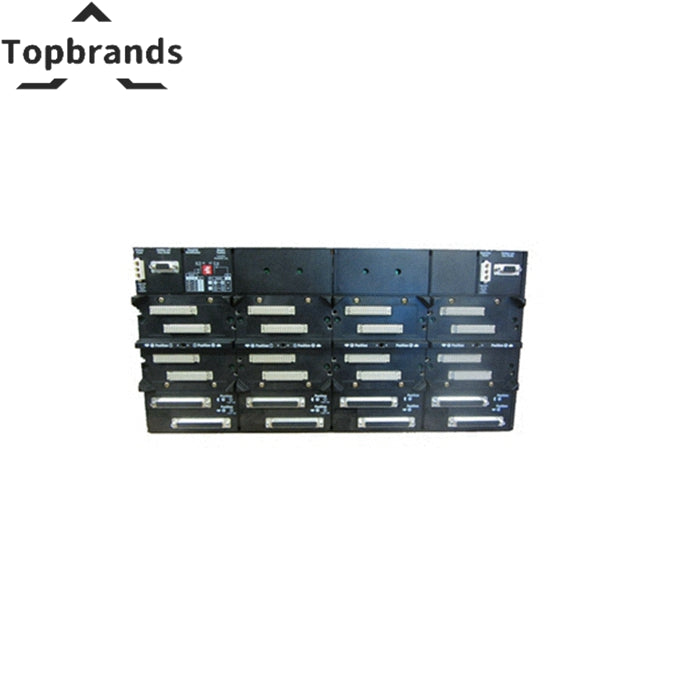

Technical Specifications of the Foxboro P0926HF Horizontal Baseplate:
Purpose and Functionality:
- Serves as a mounting platform and communication backplane for DIN rail mounted 200 Series modules within the Foxboro Evo™ system.
- Supports distributed control for both small and large systems, accommodating various Foxboro Evo™ modules.
Supported Modules:
- Specifically supports the following Foxboro Evo™ system modules:
- Field Control Processor 280 (FCP280): Available in fault-tolerant or non-fault-tolerant configurations.
- Field Device Controller 280 (FDC280): Also available in fault-tolerant or non-fault-tolerant versions.
- Field Control Processor 270 (FCP270): Available in fault-tolerant or non-fault-tolerant configurations.
- Field Communications Modules (FCM100Et and FCM100E) and other FCMs.
- Fieldbus Expansion Modules (FEM100E).
- Fieldbus Isolator/Filter Modules (FBI200/FBI100).
- Standard Fieldbus Modules (FBMs) and 100 Series FBMs.
Baseplate Features:
- Module Positions: Available in 2, 4, and 8 module positions, offering flexible configuration options.
- Mounting Configurations:
- Horizontal DIN rail mount.
- Vertical DIN rail mount.
- Horizontal or vertical DIN rail mount (baseplate remains in horizontal orientation).
- Additional Features:
- Connection for optional GPS time strobe (for FCP280/FCP270, FDC280, and FCM100Et baseplates).
- Backwards compatibility with existing I/O subsystems.
- Primary and secondary 24 V dc power and communications connections.
- Passive backplane for increased system reliability.
