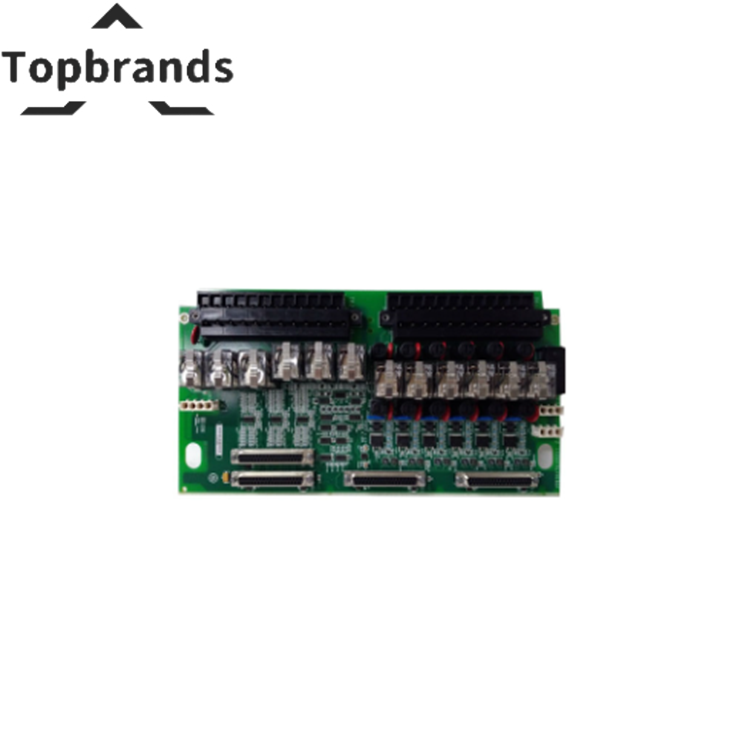

GE Mark VI IS200TRLYH1BGF Relay Output Board

Description

The IS200TRLYH1BGF is a relay output board developed by General Electric (GE), designed as a crucial component of the Mark VI control system. In these systems, the TRLY board is managed by either the VCCC, VCRC, or VGEN boards, supporting both simplex and TMR (Triple Modular Redundancy) configurations. The connection between the terminal board and the VME rack, where the I/O boards are housed, is established through cables with molded plugs. Simplex setups utilize Connector JA1, while TMR systems use connectors JR1, JS1, and JT1.

Specifications

• Part No.: IS200TRLYH1BGF
• Manufacturer: General Electric
• Country of Manufacture: United States of America (USA)
• Temperature Rating (Operating): 0 to 60°C
• Temperature Rating (Storage): -30 to +65°C
• Size: 17.8 cm wide x 33.02 cm high
• Product Type: Relay Output Board
• Availability: In Stock
• Series: Mark VI

Features

• Relay Configuration:

  • The IS200TRLYH1BGF is equipped with 12 plug-in magnetic relays, offering flexible configurations to suit various applications and requirements.

• Output Options:

  • The first six relay circuits are configurable via jumpers, allowing selection between dry, Form-C contact outputs or driving external solenoids, providing versatility in system design.

• Power Sources:

  • Multiple power source options are supported, including a standard 125 V DC or 115/230 V AC, as well as an optional 24 V DC source.
  • Each power source is equipped with individual jumper-selectable fuses and onboard suppression, enhancing safety and reliability.

• Relay Functionality:

  • Relays 7-11 offer unpowered isolated Form-C contacts, suitable for a range of standard applications.
  • Output 12 features an isolated Form-C contact designed for specialized uses, such as ignition transformers.

• Enhanced Control:

  • The configurable relay circuits and multiple power source options provide enhanced control and flexibility in diverse industrial settings.

• Reliable Performance:

  • Engineered for reliability and longevity, the board ensures consistent performance even in demanding operational environments.

• Integration and Compatibility:

  • The IS200TRLYH1BGF integrates seamlessly into existing control systems and is compatible with a wide range of industrial equipment and applications.

• Ease of Installation:

  • Installation and setup are straightforward, allowing for quick integration into control systems with minimal modifications or adjustments.

• Safety Features:

  • Safety is a priority with onboard suppression and individual jumper-selectable fuses designed to ensure safe and reliable operation.
