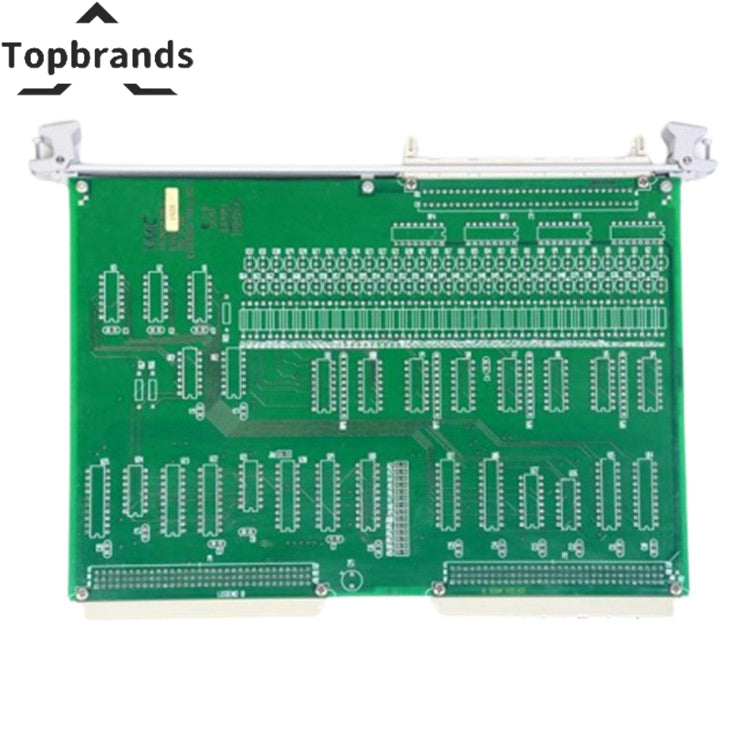

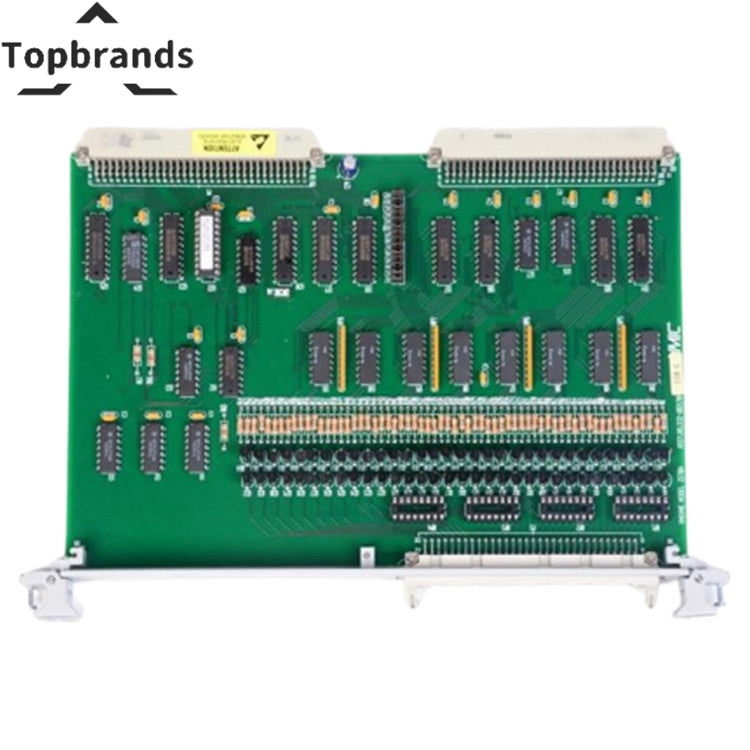

GE VMIVME3125 (Part Number 332-003125-100) 32-Channel, 12-Bit Analog-to-Digital Converter Module Overview
The GE VMIVME3125 is a versatile 32-channel analog-to-digital converter (ADC) module designed for the VMEbus, offering high-resolution conversion and robust features suitable for various industrial and measurement applications.
Key Technical Specifications
-
Input Channels:
- 32 single-ended or 16 differential
-
Resolution:
-
Input Voltage Ranges:
- -50 mV to -10 V or 0 to 25 mA
-
Conversion Rate:
-
Gain:
- Jumper-programmable gains of x1, x10, x100
-
Data Coding:
- Selectable as offset binary or two’s complement
-
Isolation:
- 1,000 V analog GND/digital GND isolator
-
Low Pass Filters:
- Standard 50 kHz, optional 40 Hz
-
Overvoltage Protection:
Applications
-
Data Acquisition: Ideal for capturing analog signals from sensors and transducers in industrial automation and test systems.
-
Process Monitoring: Monitors process variables with high accuracy and reliability in manufacturing and industrial environments.
-
Control Systems: Integrates into control systems to convert analog signals for digital processing and control.
-
Signal Analysis: Provides data for analysis and decision-making in research, development, and testing applications.
