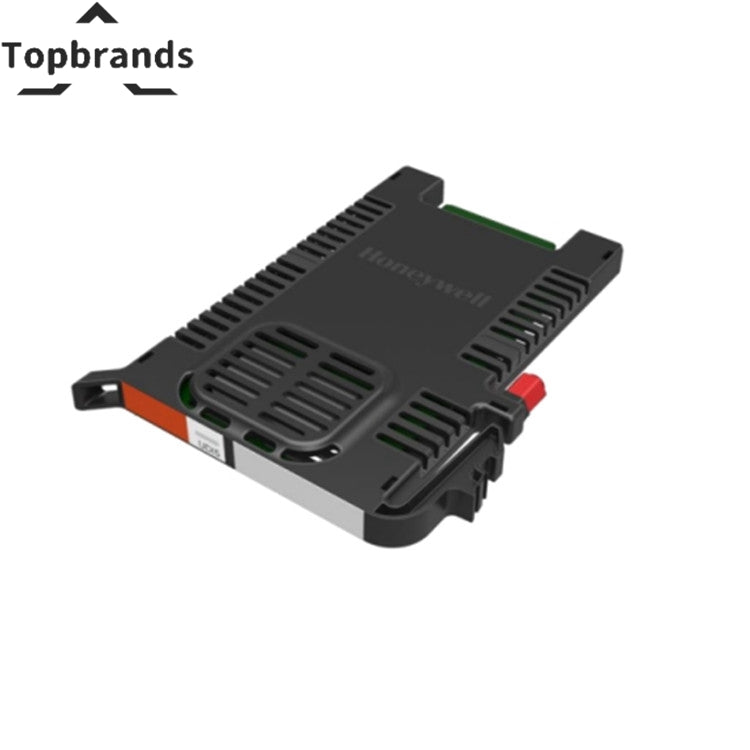

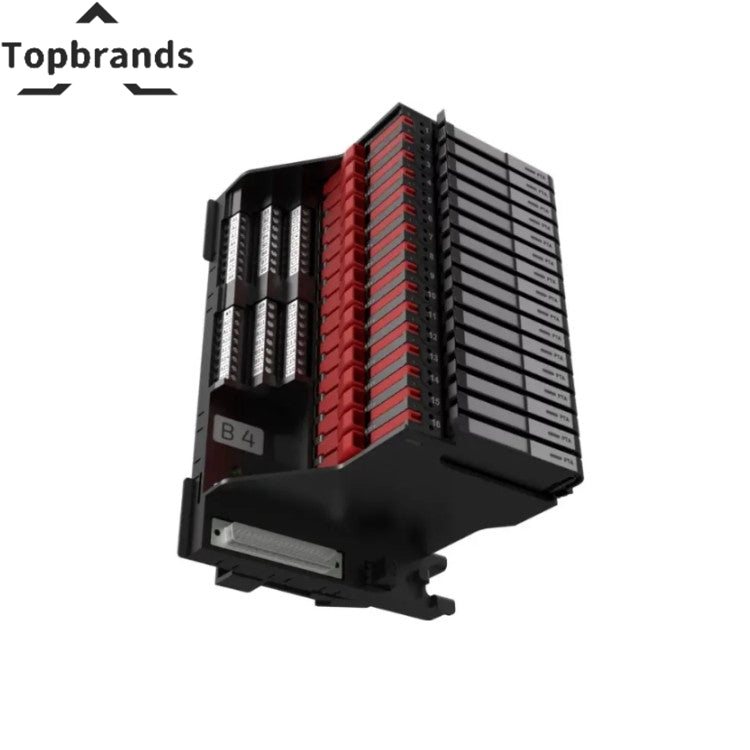

The technical specification of Single Channel Pass Through Adapter:

Features

  • Type: Single channel Pass Through Adapter
  • Compatibility:
    • 2-wire AI/AO/DIL/DO/DOL
    • System powered field I/O
    • HART Pass Through
  • Interface: Compatible with conventional Series C IOMs, Universal IO, and Universal Safety IO Module

Parameter Specifications

  • Dimensions:
    • Size: 118 mm (D) x 85.75 mm (W) x 10.0 mm (H)
  • Assembly Option:
    • Backplane mount, screw-less
  • Connections:
    • 2 signal lines from Safety System to field side
  • Indicators: None
  • Mistake Proof: Not Applicable

Ambient Conditions

  • Operating Temperature:
    • Range: -40 °C to +70 °C
  • Storage/Transport Temperature:
    • Range: -40 °C to +85 °C
  • Permissible Humidity:
    • Range: 5% to 95% (non-condensing)
  • Vibration:
    • Non-Operational: 1g, 10 Hz to 150 Hz
    • Operational: 0.5g, 10 Hz to 150 Hz
  • Shock:
    • Operational: 5g
    • Non-Operational: 15g

Enclosure and Mounting

  • Assembly:
    • Base plate and housing
  • Mounting:
    • Base plate with DIN rail mount & snap housing to the base plate

Electrical Specifications

  • Power:
    • Voltage: 24V DC
  • Max Current:
    • Rating: 500 mA
  • Power Indication: Not Applicable
  • Interface to Safety System:
    • Type: 37-pin DSUB (For SIC cable)
  • Field Side Interface:
    • Type: Dedicated 3 terminals per channel
  • Field Side Wire Gauge:
    • Range: 12-24 AWG

Compliance

  • SIL Rating:
    • Level: SIL 3 as per IEC 61508
  • Ingress Protection:
    • Rating: IP20 as per IEC 60529
  • Flammability Rating:
    • Rating: V0 as per UL 94
  • Conformance:
    • ANSI/ISA 60079-0; 60079-15
  • EMC Directive:
    • IEC 61326-1 2012
  • ATEX:
    • Rating: Ex ic IIC T4 Gc, Ex ec nC IIC T4 Gc
  • IEC Ex:
    • Rating: Ex ic IIC T4 Gc, Ex ec nC IIC T4 Gc
  • USA/Canada:
    • Rating: Class I, Div. 2, Groups A, B, C, D T4, Class I, Zone 2, IIC T4
  • RoHS Compliance: Yes
