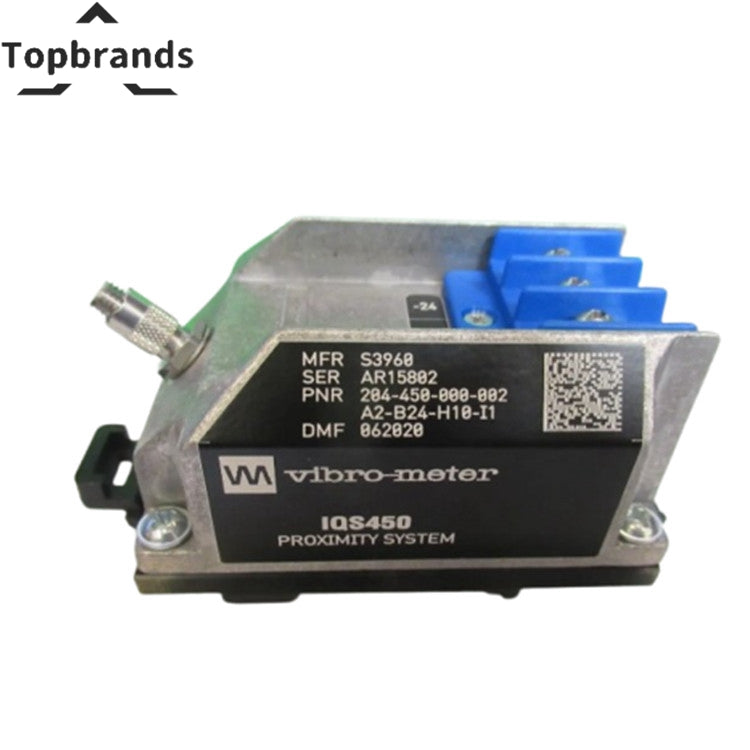

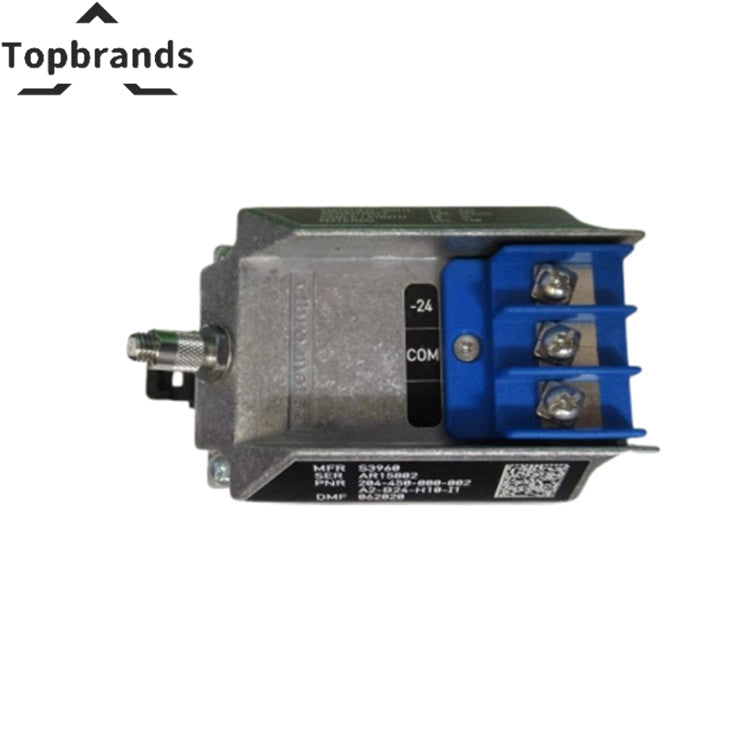

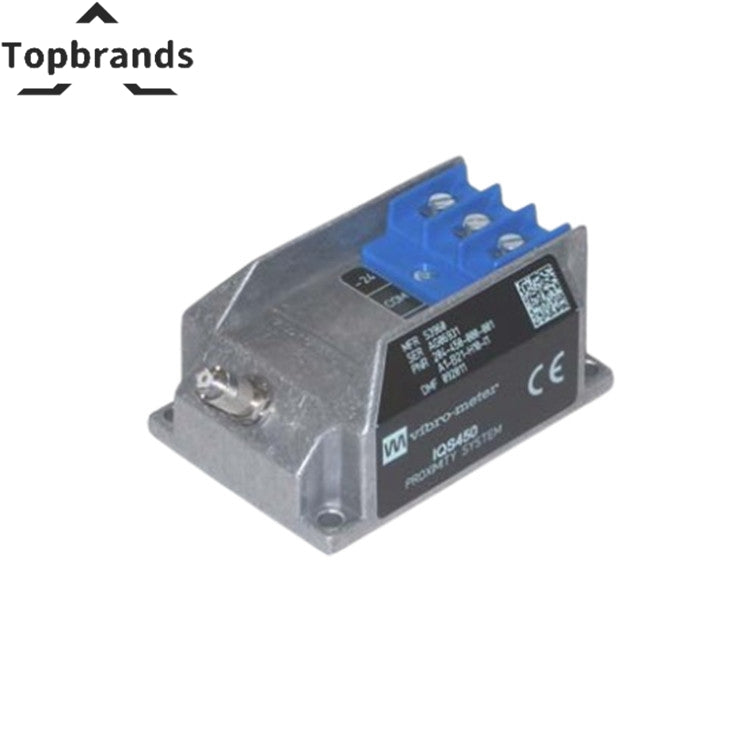

MEGGITT IQS450 204-450-000-002-A2-B21-H05-I0 Signal Conditioner

The specifications for the IQS 450 signal conditioner:

Output Voltage output, 3-wire configuration:

• Voltage at min. gap: -1.6 V
• Voltage at max. gap: -17.6 V
• Dynamic range: 16 V
• Output impedance: 500 Ω
• Short-circuit current: 45 mA

Current output, 2-wire configuration:

• Current at min. gap: -15.5 mA
• Current at max. gap: -20.5 mA
• Dynamic range: 5 mA

Output capacitance: 1 nF
Output inductance: 100 µH

Supply Voltage output, 3-wire configuration:

• Voltage: -20 to -32 V*
• Current: Not specified

Current output, 2-wire configuration:

• Voltage: -20 to -32 V*
• Current: -15.5 to -20.5 mA

Supply input capacitance: 1 nF
Supply input inductance: 100 µH

Environmental:

• Temperature ranges:
  • Operating: -35 to +85 °C*
  • Storage: -40 to +85 °C
• Humidity: Max. 95% non-condensing. 100% condensing (not submerged).
• Protection rating (according to IEC 60529): IP40
• Vibration (according to IEC 60068-2-26): 2 g peak between 10 and 55 Hz
• Shock acceleration (according to IEC 60068-2-27): 15 g peak (half sine-wave, 11 ms duration)
