Technical Data
Notes
-
Note on Application: For industrial use only.
-
Utilization Restriction:
-
CCCex Note: Use in potentially explosive areas is not permitted in China.
Product Properties
-

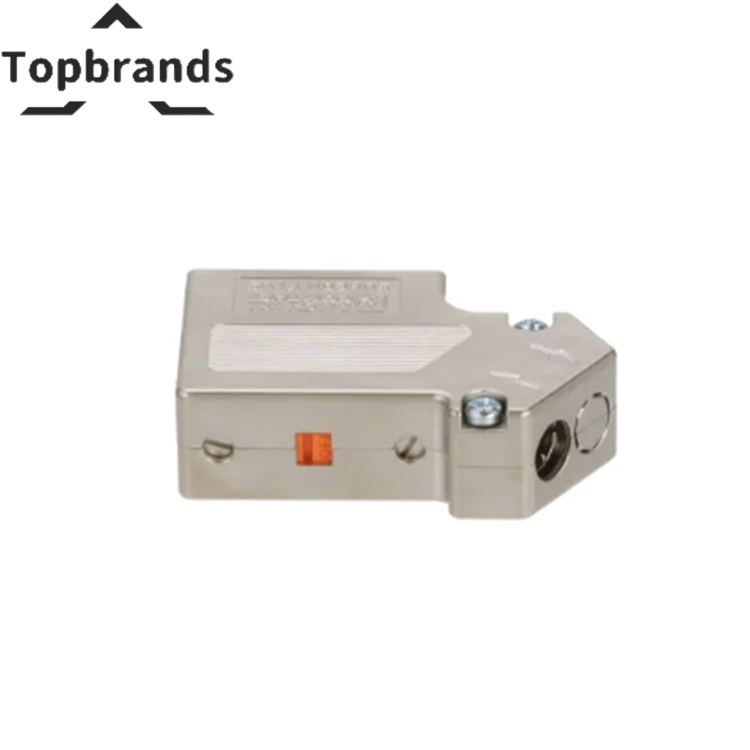

Product Type: Data Plug
-
MTTF (Mean Time To Failure):
- 6706 years (SN 29500 standard, temperature 25°C, operating cycle 21%)
- 1817 years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
- 155 years (SN 29500 standard, temperature 40°C, operating cycle 100%)
-
Pin Assignment: 3, 5, 6, 8
Electrical Properties
-
Maximum Power Dissipation for Nominal Condition: 0.025 W
-
Nominal Voltage (UN): 5 V
-
Nominal Current (IN): 100 mA
-
Transmission Medium: Copper
Connection Data
- D-SUB Connection
-
Connection Method: D-SUB connector
-
PCB Connection Method: Screw connection
-
Stripping Length: 5 mm
-
Conductor Cross Section (Rigid):
- Min: 0.14 mm²
- Max: 1.5 mm²
-
Conductor Cross Section (Flexible):
-
Single-Wire/Terminal Point (Rigid):
-
Single-Wire/Terminal Point (Flexible):
Dimensions
-
Width: 16.6 mm
-
Height: 39.4 mm
-
Length: 58 mm
-
External Diameter (Min): 7.6 mm
-
External Diameter (Max): 8.4 mm
Material Specifications
-
Housing Material: ABS (metal-plated)
-
Cable/Line:
-
External Cable Diameter: 7.6 mm ... 8.4 mm (Incoming bus line)
Mechanical Properties
-
Insertion/Withdrawal Cycles: > 200
Environmental and Real-Life Conditions
-
Degree of Protection: IP40
-
Ambient Temperature (Operation): -20°C ... 75°C
-
Ambient Temperature (Storage/Transport): -25°C ... 80°C
-
Altitude: ≤ 5000 m (for restrictions, see manufacturer's declaration for altitude operation)
-
Permissible Humidity (Operation): 10% ... 95% (non-condensing)
-
Permissible Humidity (Storage/Transport): 5% ... 95% (non-condensing)
