ROBOX | AS5024.001 | 32-channel Digital Input Board | Brand New

ROBOX AS5024.001 Digital Input Board Technical Specifications

Overview: The AS5024.001 is a 32-channel digital input board manufactured by ROBOX S.P.A., designed to integrate seamlessly within the RIOR RACK system. Each channel is opto-isolated and operates with positive logic at 24VDC, ensuring compatibility with PLCs.

Input Word Addresses:

• Inputs 1 to 16 correspond to Input Word (“BASE” + 0).
• Inputs 17 to 32 correspond to Input Word (“BASE” + 1).
• Software Requirements: Operating System Flash (OSFM) version 1.07 or higher, and RHLL language version 21.04 or higher.

Front Panel:

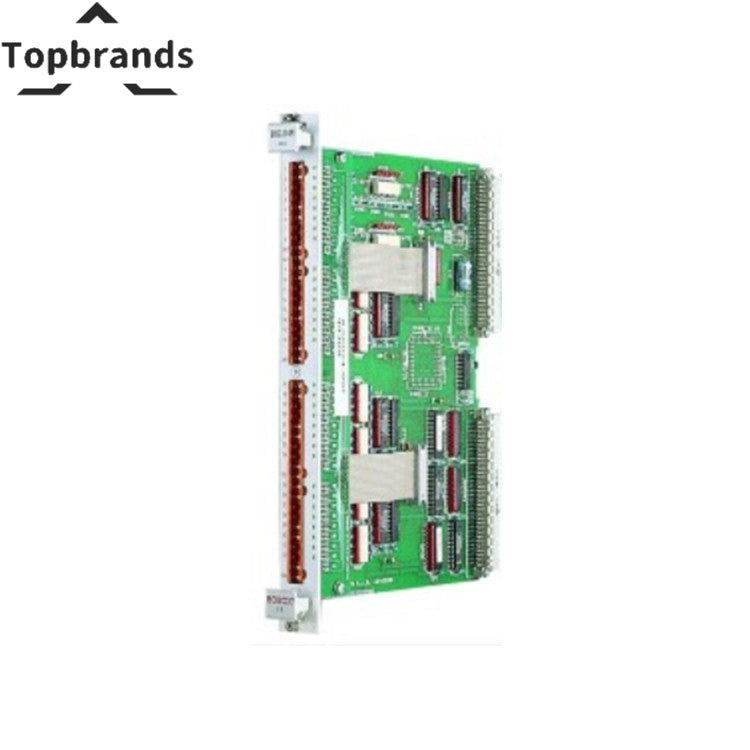

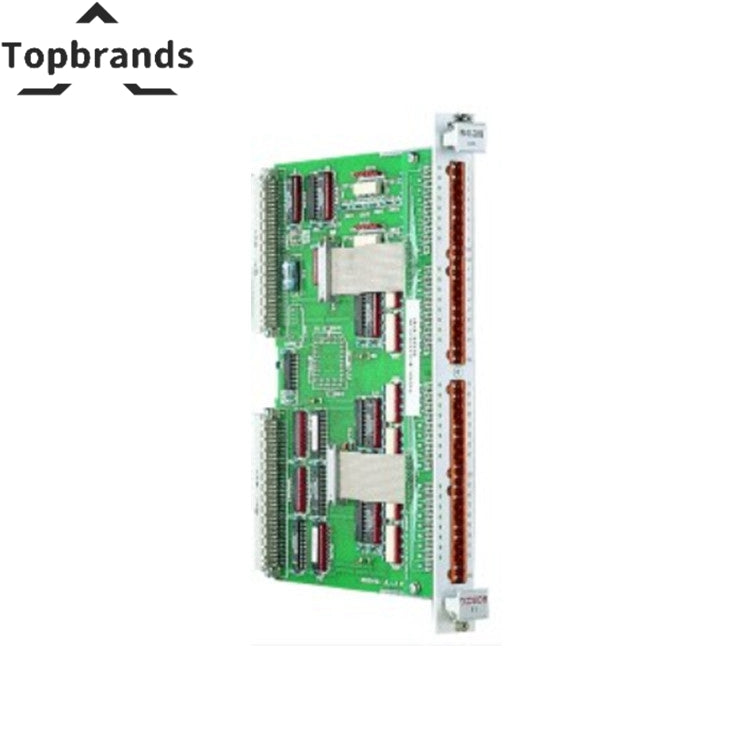

• Features 32 input LEDs indicating the active state of each input.
• Green LEDs illuminate when the corresponding input is active (driving +24V).

Specifications:

• Digital Inputs: 32 channels (4 groups of 8)
• Input Voltage Range: -30V to +30V
• Off-State Voltage: 15V minimum
• Off-State Current: 5mA minimum
• On-State Voltage: 5V maximum
• On-State Current: 7mA typical
• Input Impedance: 3.8 KOhm typical
• Propagation Delay: 400μs typical
• Isolation: 1500V AC rms
• Backplane Current (5V): 250mA maximum
• Power Dissipation: 12W maximum

Environmental Conditions:

• Temperature: 0°C to 50°C
• Humidity: 85% maximum (without condensation)

External Connections:

• Use Weidmuller BLA10 connectors with screw terminals.
• Minimum cable section: Input - 0.22 mm², External GND - 0.5 mm².
