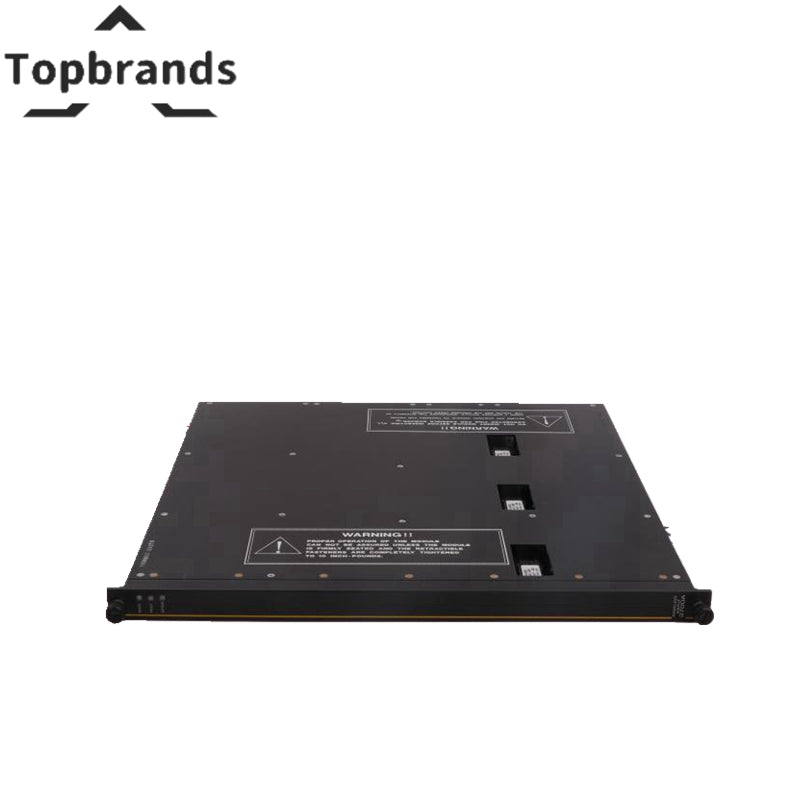

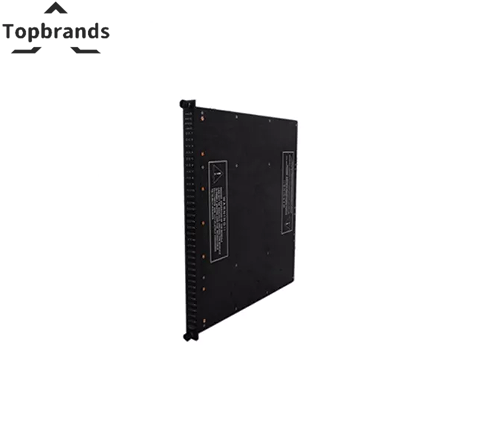

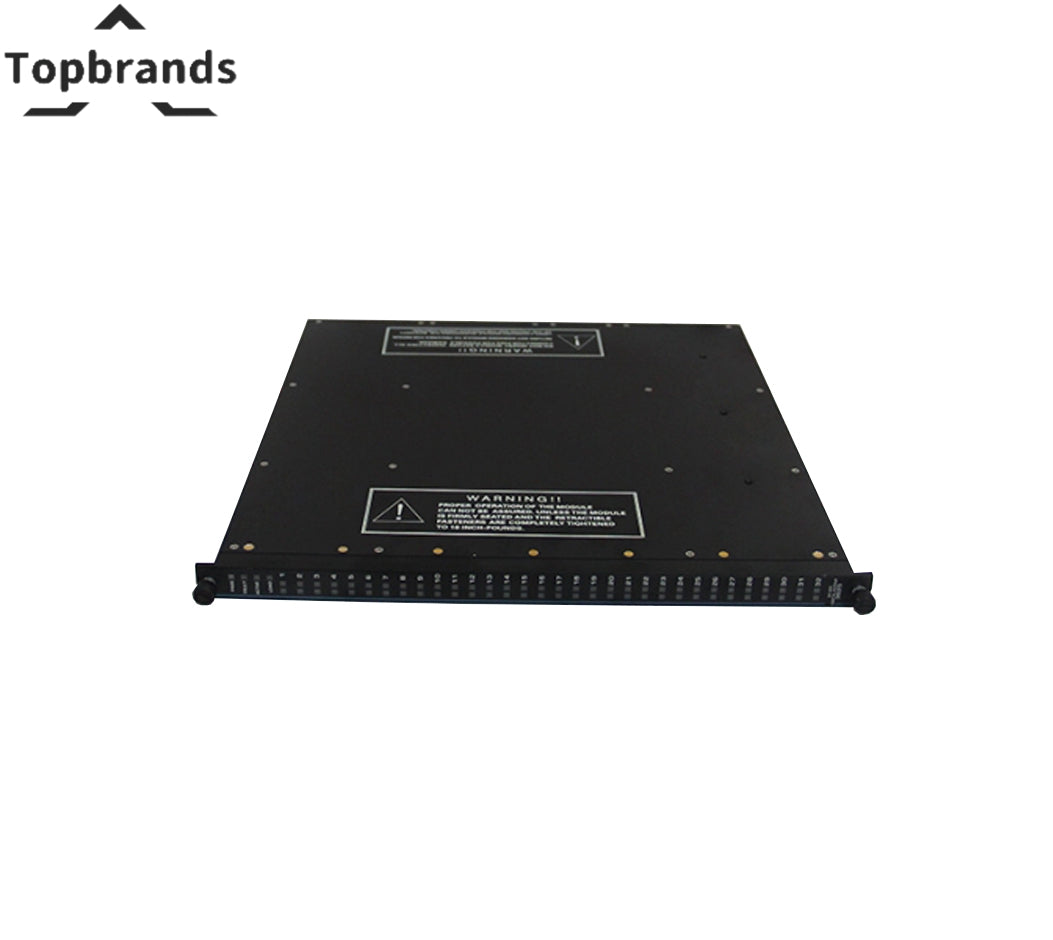

Triconex 4353 Tricon Communication Module (TCM) in stock

TCM Model 4353 Specifications

General Information:

• Model Number: 4353

Serial Ports:

• Ports: 4 RS-232/RS-485 ports
• Connectors: DB-9 connectors

Network Ports:

• Copper Ethernet Ports: 2, 10/100BaseT Ethernet ports, RJ-45 connectors (model 4351A and 4353)
• Fiber Ethernet Ports: 2, fiber-optic mode Ethernet ports, MTRJ connectors with 62.5/125 µm fiber cables (model 4352A and 4354)

Port Isolation:

• Isolation Voltage: 500 VDC

Supported Protocols:

• TriStation
• Modbus
• TCP/IP
• ICMP
• SNTP
• TSAA
• Trimble GPS
• Peer-to-Peer
• Peer-to-Peer Time Synchronization
• Jet Direct (network printing)

Modbus Functions Supported:

• 01: Read Coil Status
• 02: Read Input Status
• 03: Read Holding Registers
• 04: Read Input Registers
• 05: Modify Coil Status
• 06: Modify Register Content
• 07: Read Exception Status
• 08: Loopback Diagnostic Test
• 15: Force Multiple Coils
• 16: Preset Multiple Registers

Communication Speed:

• Copper Ethernet Ports: 10/100 Mbps
• Fiber Ethernet Ports: 100 Mbps
• Serial Ports: Up to 115.2 Kbps per port

Status Indicators:

• PASS: System Pass indicator
• FAULT: System Fault indicator
• ACTIVE: Active status indicator
• FIRM: Firmware status indicator
• LINK: 1 per network port
• TX (Transmit): 1 per port
• RX (Receive): 1 per port
